Description
Description

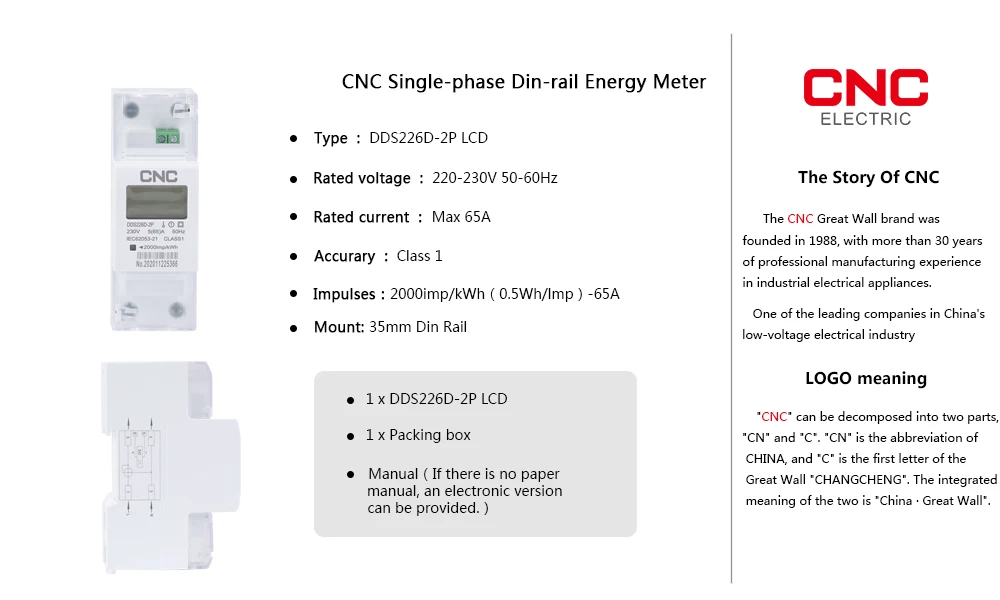

Type:DDS226D-2P LCD
Rated voltage:220-230V 50-60Hz
Rated current:Max 65A
Accurary:Class 1
Impulses:2000imp/kWh(0.5Wh/Imp)-65A)
Mount:35mm Din Rail
General
DDS226D-2P single phase Din-rail watt-hour meter is a kind of new style single phase electrical watt-hour meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc.
The meter completely accord with relevant technical requirements of class 1 and class 2 single phase energy meter stipulated in International standard IEC62053-21(IEC61036). It can accurately and directly measure 50/60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step type impulse register.
It has following features: good reliability, small volume, light weight, specious appearance, convenient installation, etc.
3.May select step motor type impulse register display 99999.9kWh(5+1).
4.Passive impulse output, complying with DIN43864.
Product Feature
![](https://ae01.alicdn.com/kf/H7341568200b3446bab6234019215883fo.jpg)
![](https://ae01.alicdn.com/kf/H48dbaaba5cee4cf7b10d565fa7b2e2517.jpg)
![](https://ae01.alicdn.com/kf/Hf4fba02eb1a144b6941cd9a08a7425b5C.png)
