Description
Description
Type：YCB6HLE-63
Product Name：RCBO
In（A）：6,10,16,20,25,32,40,50,63
Poles：2P
Sensitivity：30mA
Breaking Capacity：4.5kA
Tripping Curve：B and Curves
Standard：IEC/EN 61009-1
General
1.Protection against overload and short-circuit currents.
2.Protection against the effects of sinusoidal alternating earth fault currents.
3.Protection against indirect contacts and additional protection against direct contacts.
4.Protection against fire hazard caused by insulation faults
5.Used in residential building.
6.According to the type of instantaneo.us release classified as follows : type B(3-5)ln, type C(5-10)ln，type D(10-20)ln.

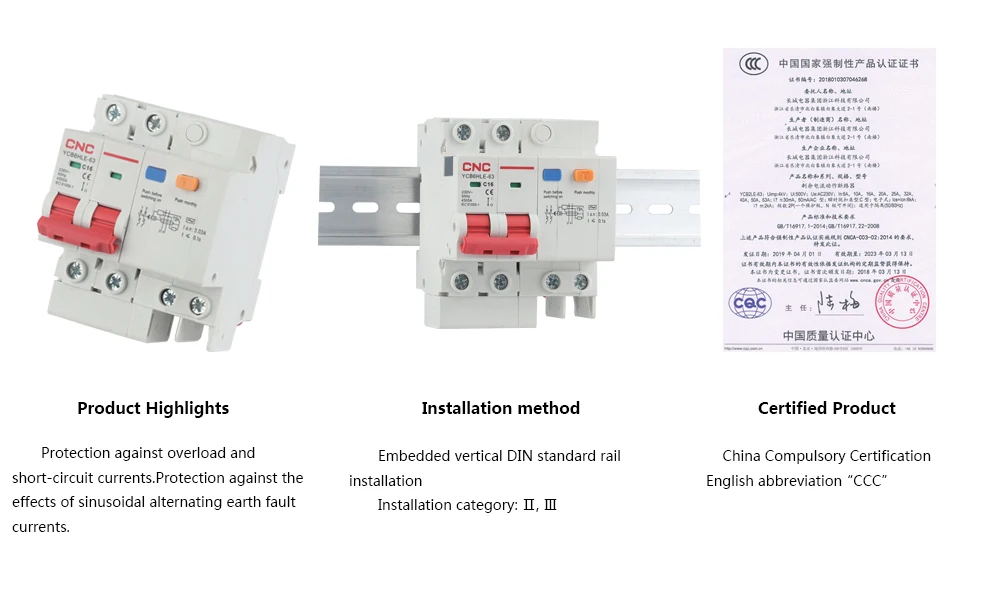

Product Installation Steps
