Description

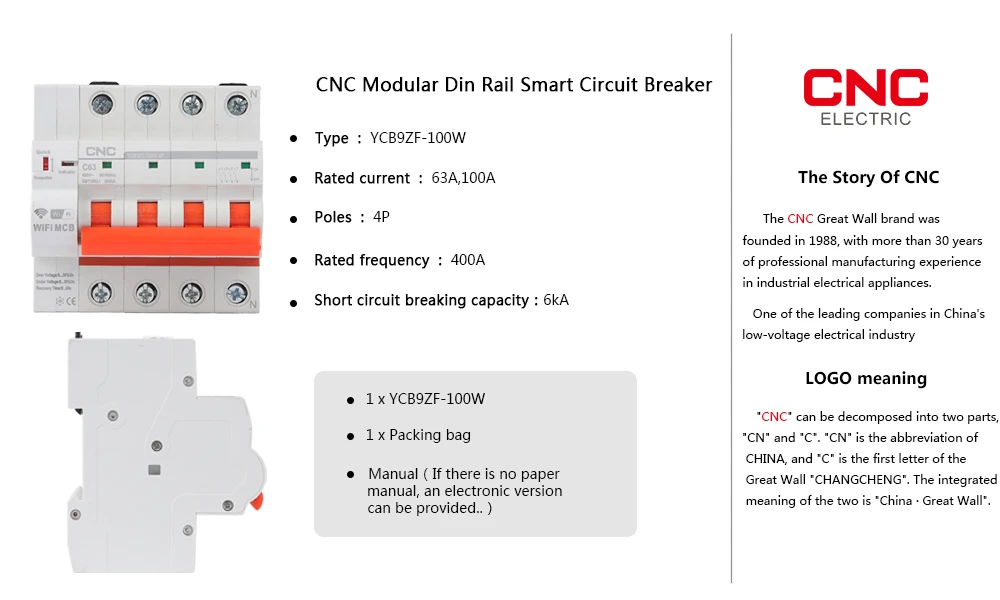

Type:YCB9ZF-100W Rated current:63A,100A Poles:4P Short circuit breaking capacity:6kA Mechanical life:More than 20000 times Electrical life:More than 6000 times Operating environment temperature:40 ℃~70 ℃
General

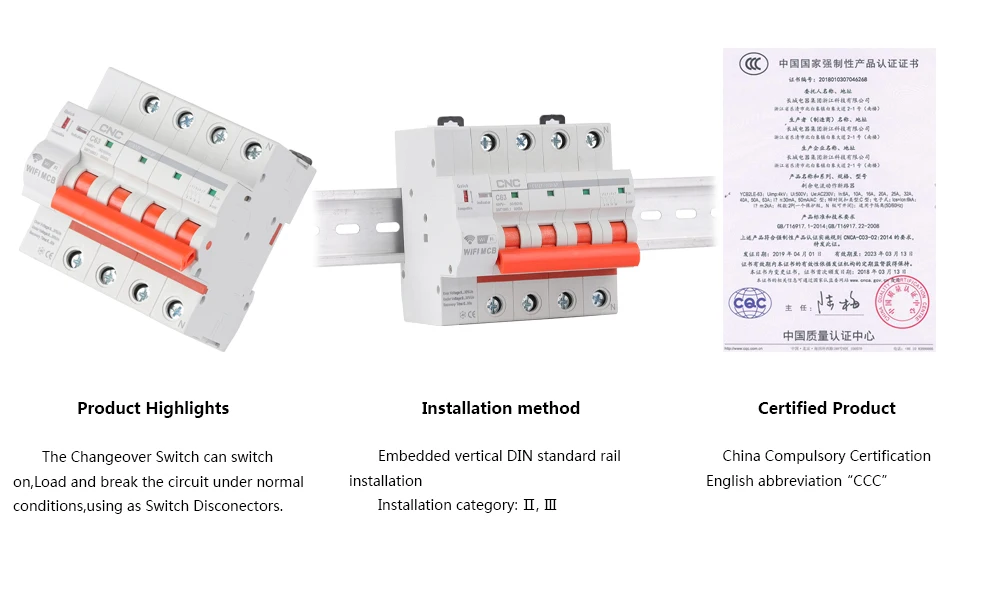

The Changeover Switch can switch on,Load and break the circuit under normal conditions,using as Switch Disconnectors. Standard: IEC 60947-5-1
![](https://ae01.alicdn.com/kf/H893a5b37dfc642cabf79e50283e1b111F.jpg)
Basic functions and features
1.OLED lattice LIQUID crystal display has long life and good low temperature characteristics; 2.Can be set as a communication gateway, through the ontology 485 interface for the branch small current switch combination networking; 3.It integrates multiple protection functions such as over voltage, under voltage, missing phase, wrong phase, loss of voltage, overload, short circuit, leakage, temperature, voltage/current imbalance, over power, under power, anti-power theft and so on into one, and supports early warning in accordance with the preset proportion; 4.Multiple functions can be closed, alarm, trip any combination, more widely applicable;
